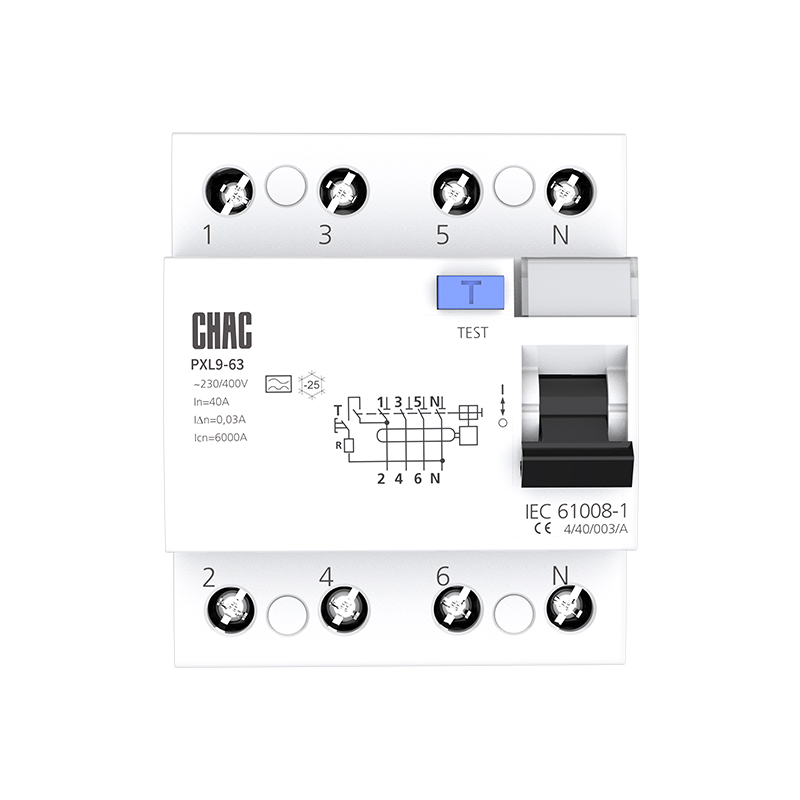

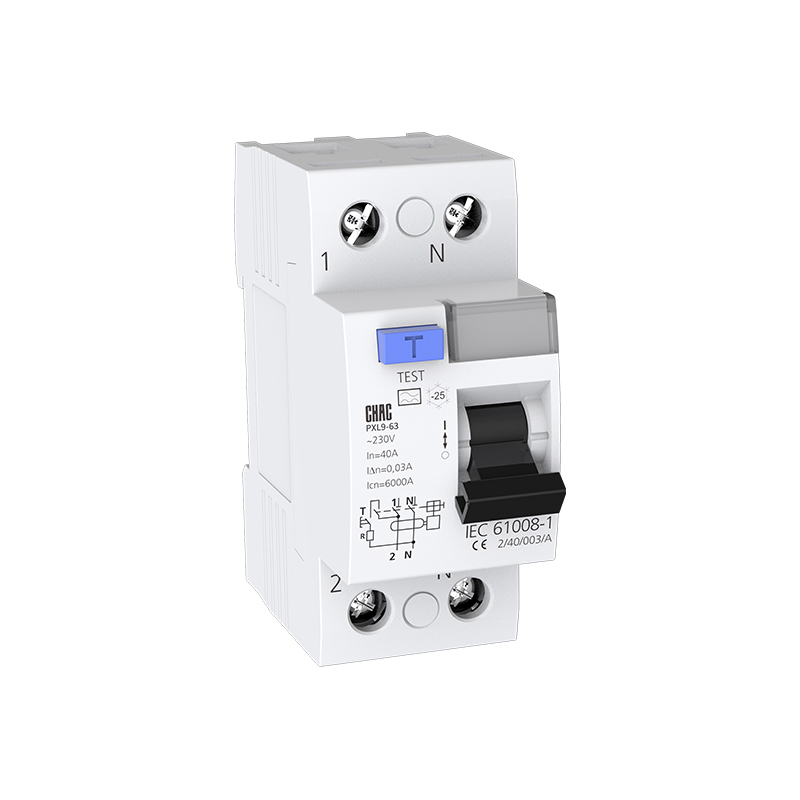

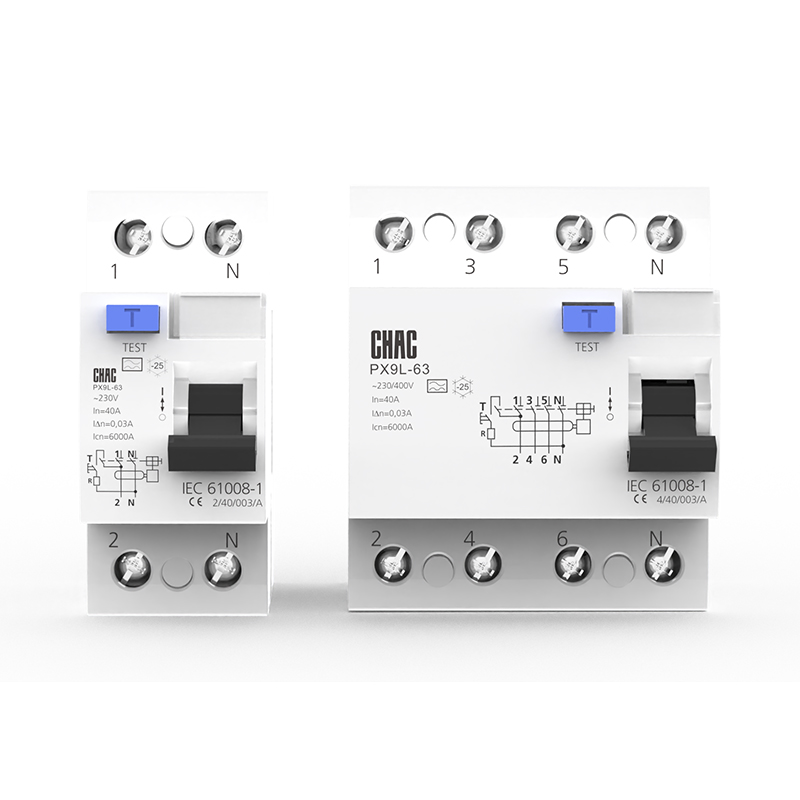

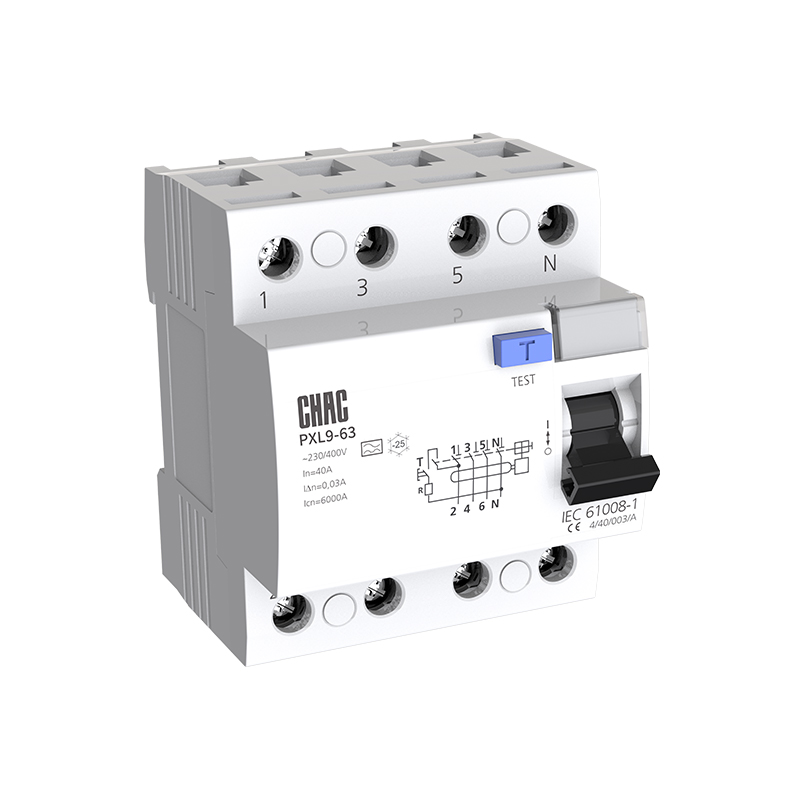

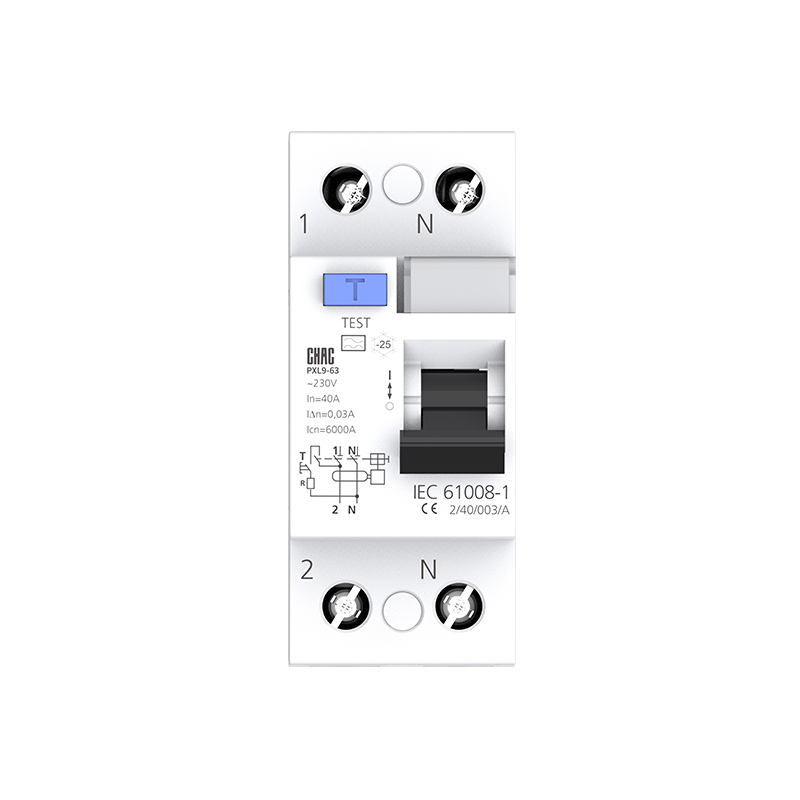

PXL9-63 series Electromagnetic Leakage Circuit Breaker
Product Overview
The PXL9-63 series electromagnetic leakage circuit breaker is designed by CHAC Electric to provide reliable protection for electrical circuits. These MCBs are suitable for AC 50Hz/60Hz systems with a rated voltage of 230V or 400V and a rated current up to 63A. When the leakage current in the circuit exceeds the specified value, the residual current operated circuit breaker can automatically and rapidly cut off the circuit to ensure personal and electrical safety. In normal conditions, it can also be used for infrequent line switching.
Overview&Description
Residual current circuit breakers are used in housing,tertiary sector and industry.
1.Control electric circuits.
2.Protect people against indirect contacts and additional protection against direct contacts.
3.Protect installations against fire hazard due to insulationfaults.
4.Wide variety of rated tripping currents.
Technical data
| Specifications | |
| Rated voltage Ue | 1P+N:230/240V 3P+N:400/415V |
| Rated current(A) | 6、10、16、20、25、32、40、50、63 |
| Rated insulation voltage(Ui) | 500V |
| Rated frequency | 50Hz/60Hz |
| Number of poles | 1P+N 3P+N |
| Rated limited short-circuit current Inc(A) | 6000 |
| Rated limited residual short-circuit current I△C(A) | 6000 |
| Mechanical & Electrical life | 4000 |
| Rated residual operating current I△n(mA) | 30、100、300 |
| Pollution degree | 2 |
| Protection degree | IP20 |
| Standards | EN/IEC 61008-1、GB/T 16916.1 |
| Tighten torque(Nm) | 2.5 |
| Rated impulse withstand voltage(Uimp) | 4000V |
| Type of residual current | AC、A、B、S、G |
| Rated making&breaking capacity Im(A) | 500A or 10In(Take the maximumvalue) |
| Rated residual making&breaking capacity I△m(A) | 500A or 10In(Take the maximumvalue) |

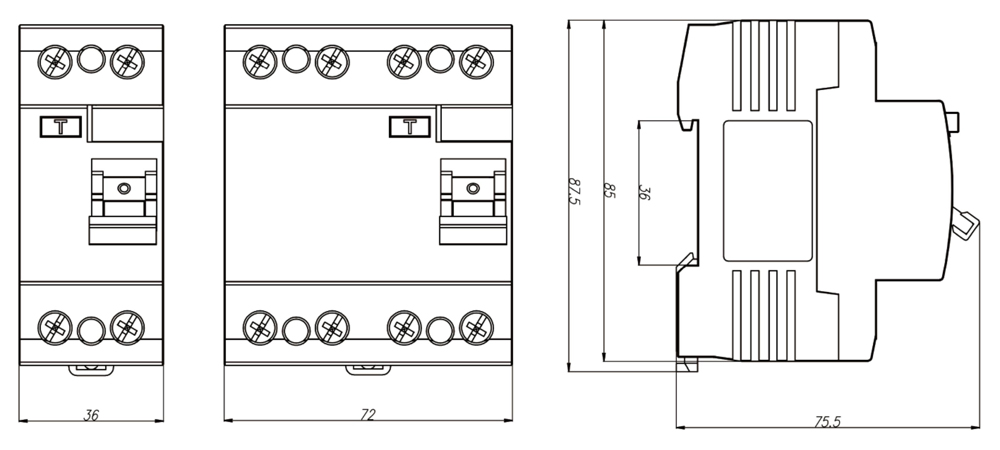

Dimension
